Educational Buildings: Schools, Offices, Laboratories

         CFD Case Study:  Smoke Exhaust Study of an Atrium in a School Office Building

To examine the effectiveness of the smoke exhaust system by CFD

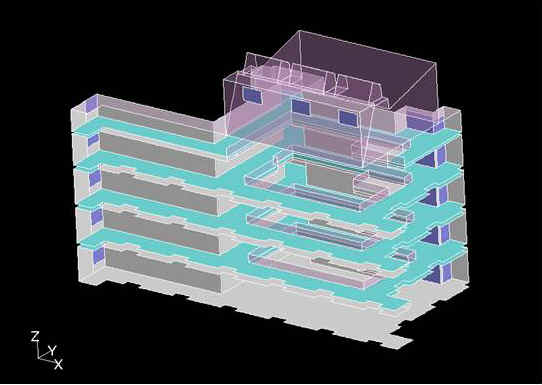

CFD Model geometry

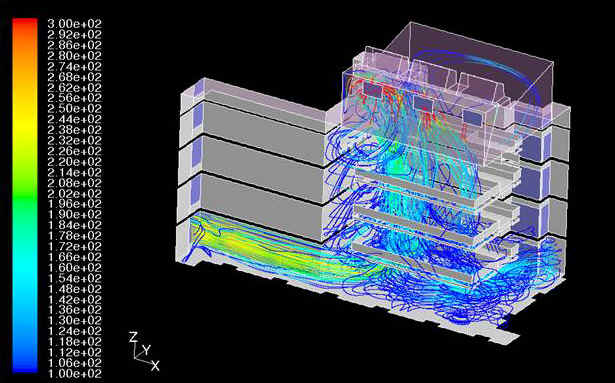

Airflow patterns

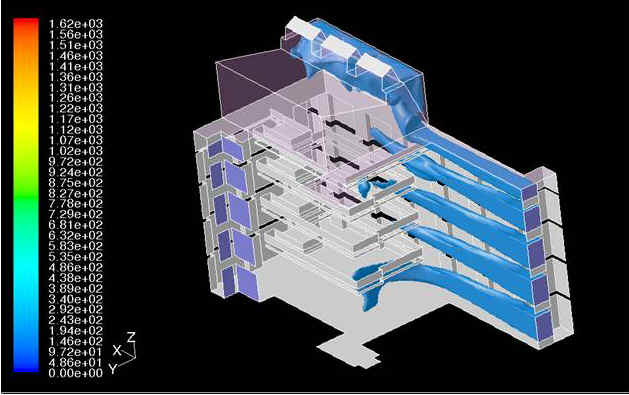

Velocity Contour for V > 200 fpm
